LaserPecker LP5 Smart 20W Laser Engraver Review

The LaserPecker LP5 Smart 20W Laser Engraver is positioned as a compact, dual-laser machine targeting both hobbyists and small business users who require versatility across a wide range of materials. With both a 20W fibre laser and a 20W diode laser, the LP5 is designed to handle metals, plastics, wood, leather, and more, making it suitable for customisation, batch production, and creative applications.

I will preface this review by stating I am not particularly arty or crafty. I normally get my brother Ted to review things like 3D printers, but in this case, the LaserPecker LP5 looked like a fun project, and it appeared easy to set up and use.

Preview	Product	Rating	Price
	LaserPecker LP5 (Basic) 20W Fiber & Diode Dual Laser...	No ratings yet	£2,499.00	Buy on Amazon

Buy from LaserPeckerBuy from Amazon

Specification

• Laser Types: 20W 1064nm fibre laser and 20W 450nm blue diode laser
• Engraving Area: 120 x 160 mm (ellipse), 100 x 100 mm (square); up to 160 x 300 mm with slide extension
• Speed: Up to 10,000 mm/s
• Supported Materials: Metals (steel, aluminium, brass, gold, silver, titanium, etc.), plastics, wood, acrylic, leather, stone, glass, paper, rubber, ceramics, food
• Software: LaserPecker Design Space (LDS) for Windows, macOS, iOS, Android; compatible with LightBurn
• Connectivity: USB-C, Wi-Fi (2.4 GHz only), Bluetooth
• Accessories: Rotary extension, safety enclosure, slide extension, air purifier (optional), cutting plate, powerpack plus
• Weight: Lightweight and portable compared to most dual-laser engravers
• Price: Starts at £2,500 (basic bundle), £2,900 (deluxe), £3,200 (ultimate)

Features

Precision and Speed Leader
The LaserPecker LP5 stands out as the lightest and fastest dual laser engraver in its category, combining 20W fibre and diode lasers. It reaches speeds of up to 10,000mm/s, offering a notable increase in productivity compared to standard machines. With an engraving precision of 0.0027mm—twice the accuracy of other dual 20W models—and an 8K resolution output, the LP5 is well suited for highly detailed work on a wide range of materials, including metals such as gold, silver, and stainless steel, as well as wood, glass, leather, and fabric.

Ideal for Instant In-Store Customisation
Built with speed and accuracy in mind, the LP5 is well suited to retail environments, maker spaces, and studios needing quick turnaround times. It supports real-time custom engraving on demand, with advanced tools such as Variable Text, Smart Filling, and an LDS Material Test Array that helps reduce material wastage and improve efficiency. The LP5 can help smaller operations achieve a level of workflow and output that’s more often associated with larger production setups.

Versatile Cutting Capability
This dual-laser machine is capable of more than just engraving. The 20W diode laser can cut through materials up to 20mm thick, such as wood and black acrylic. For metalwork, the 20W fibre laser handles sheets of brass, stainless steel, aluminium, and titanium up to 0.5mm thick. This makes the LP5 a practical solution for both detailed design work and structural cutting, covering a broad range of creative and commercial needs.

Ultra-Lightweight, Portable Design
At just 6.02 kg, the LP5 is significantly lighter than other models in its class. Its compact design makes it easy to transport and set up, whether at craft fairs, retail displays, maker events, or within a personal studio. Its portability doesn’t come at the expense of performance, making it a convenient option for businesses and creators who need flexibility without sacrificing output quality.

3D Grayscale Embossing, Deep Engraving & Colour Engraving
The LP5 can produce detailed engravings with substantial depth and clear edge definition in a single pass. Its LDS software supports textured grayscale results on materials like wood, stone, and metal. Whether designing personalised coins, decorative embossing, or customised art pieces, the LP5 offers the flexibility to produce work suited to both hobbyist projects and commercial production.

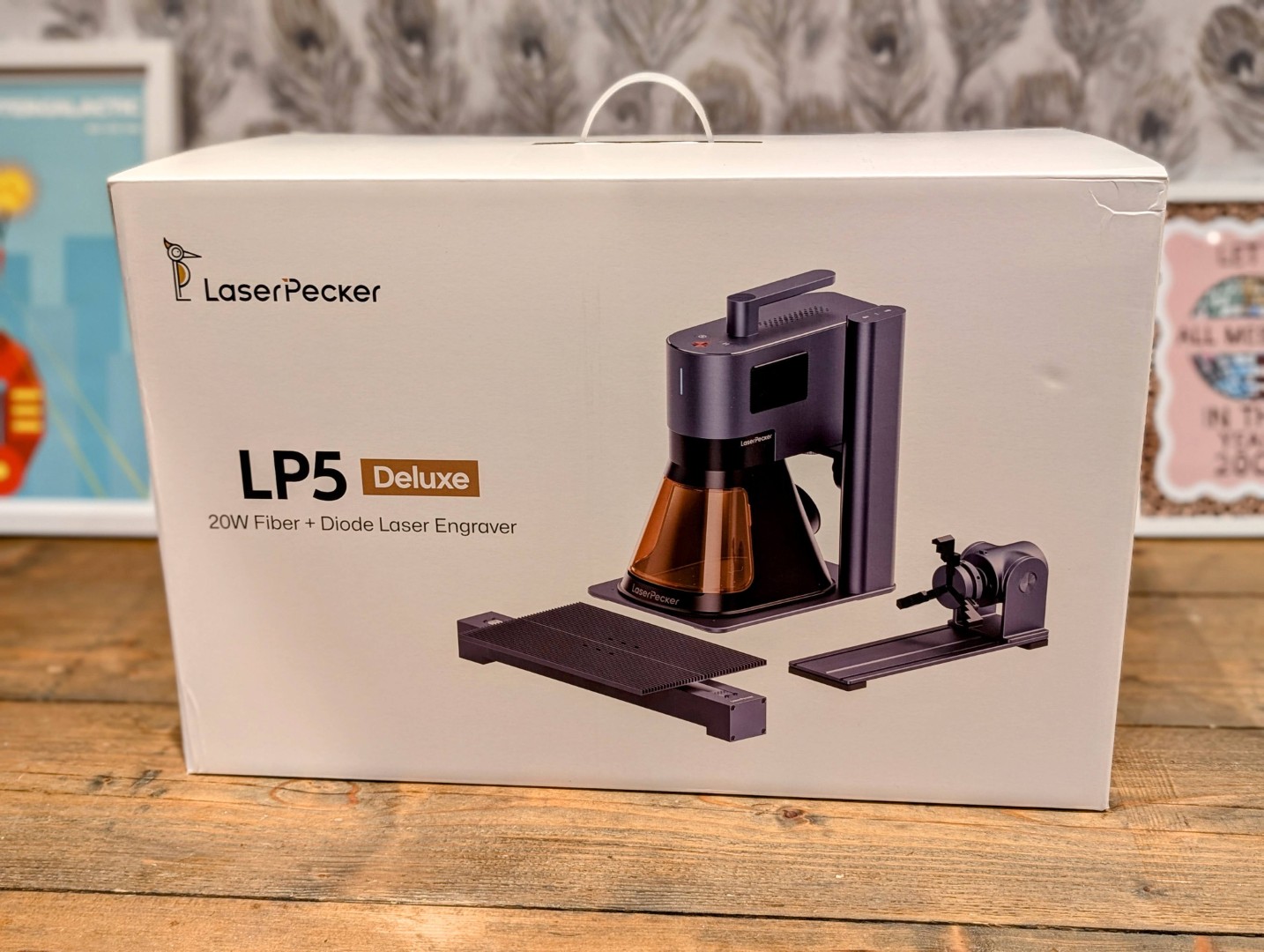

Unboxing

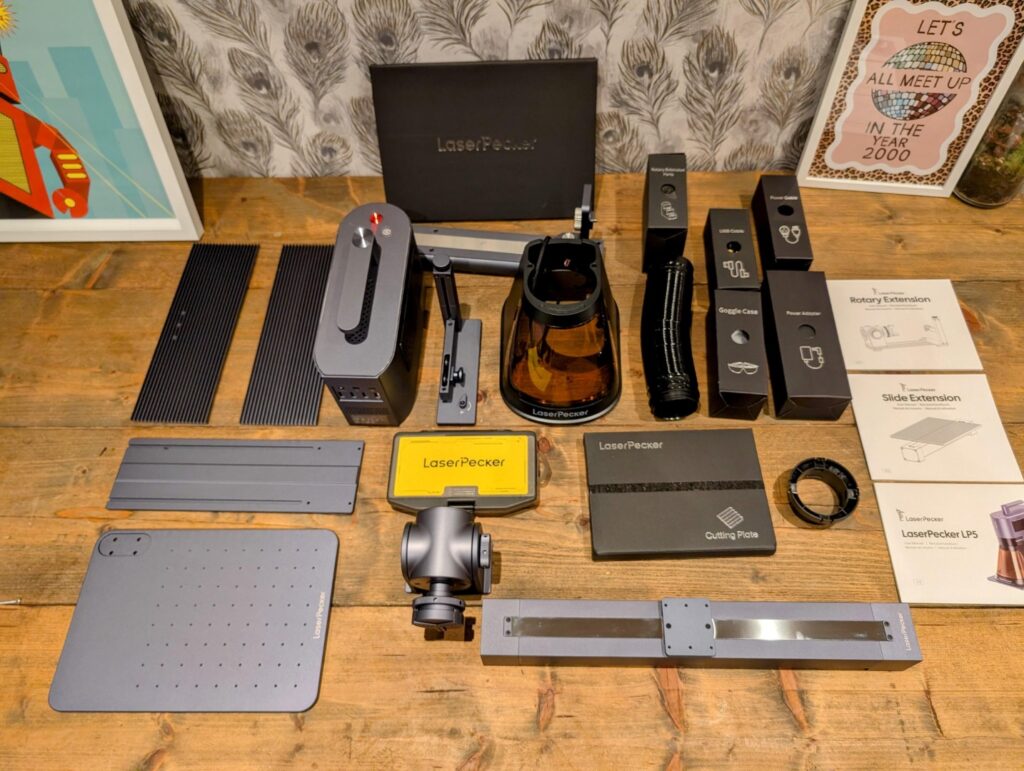

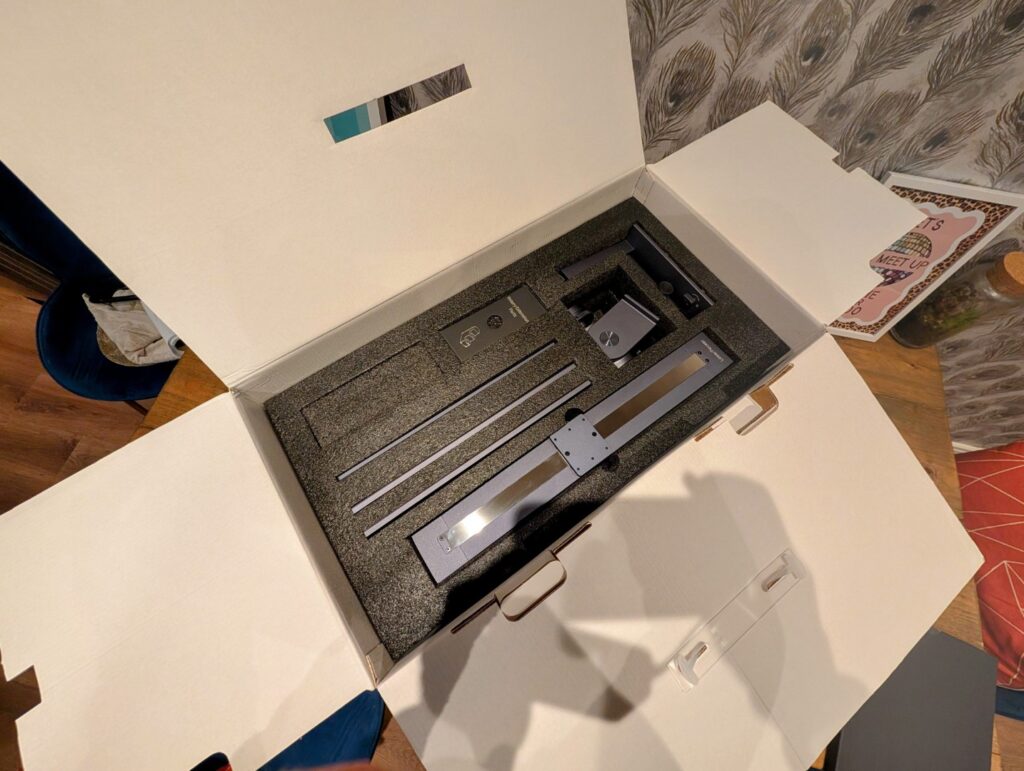

The LP5 arrives well-packaged, with the main unit, laser head, and accessories securely separated. The kit includes:

• LP5 main unit with integrated stand
• Laser module (pre-installed or easily attachable)
• Power supply
• Protective glasses
• Sample materials (wood, metal cards, leather, etc.)
• USB cable
• Quick start guide and links to detailed online instructions

Optional accessories, such as the rotary extension and safety enclosure, are boxed separately.

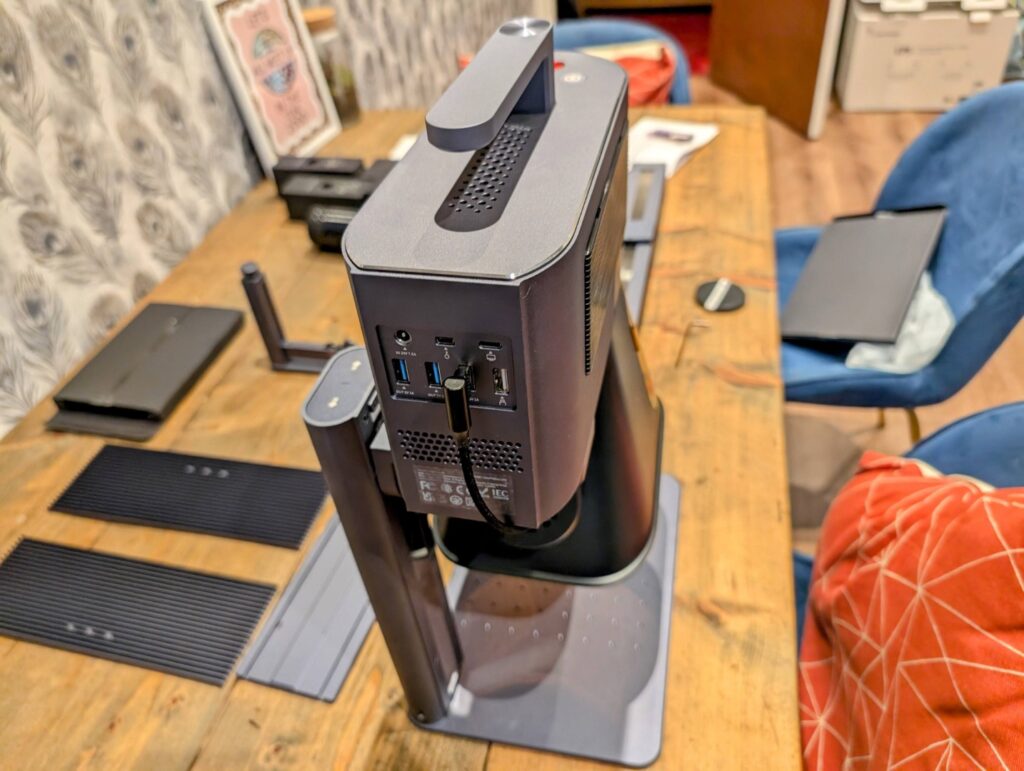

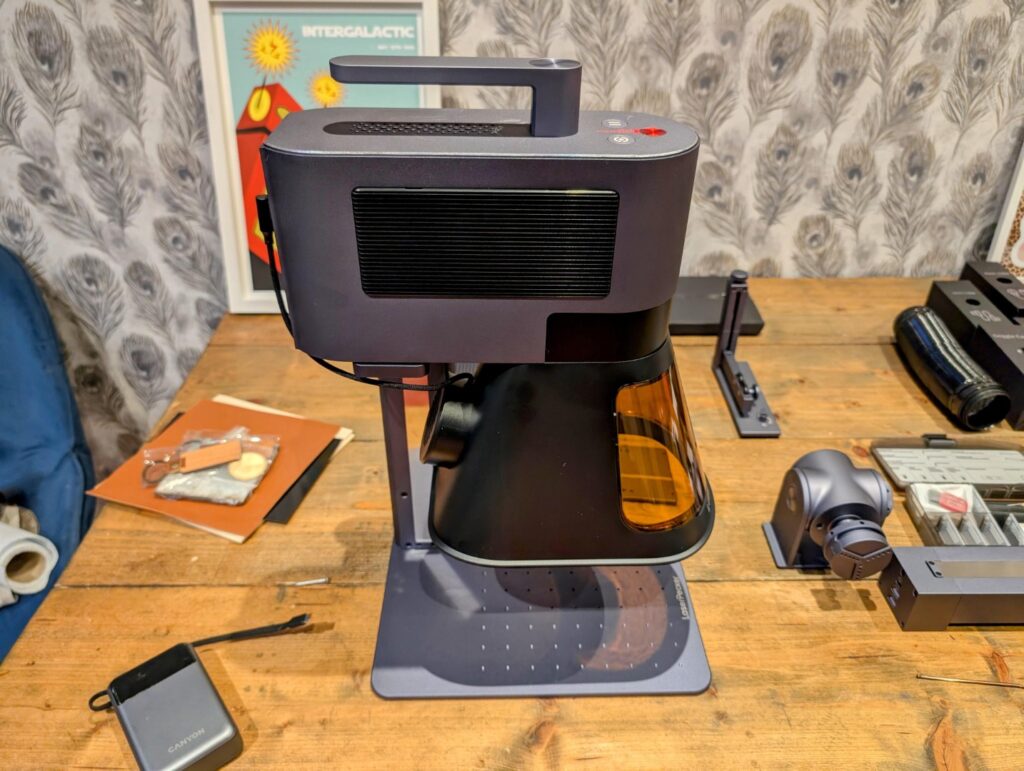

Set Up

Assembly is straightforward, and instructions are adequate, better than some Chinese brands, and it is relatively intuitive what you need to do. The process involves attaching the laser head, connecting the power, and optionally installing the safety enclosure or rotary extension. Calibration is required for precise focusing, achieved by merging two red dots projected onto the work surface. The stand’s up/down controls and software preview modes make this process relatively simple.

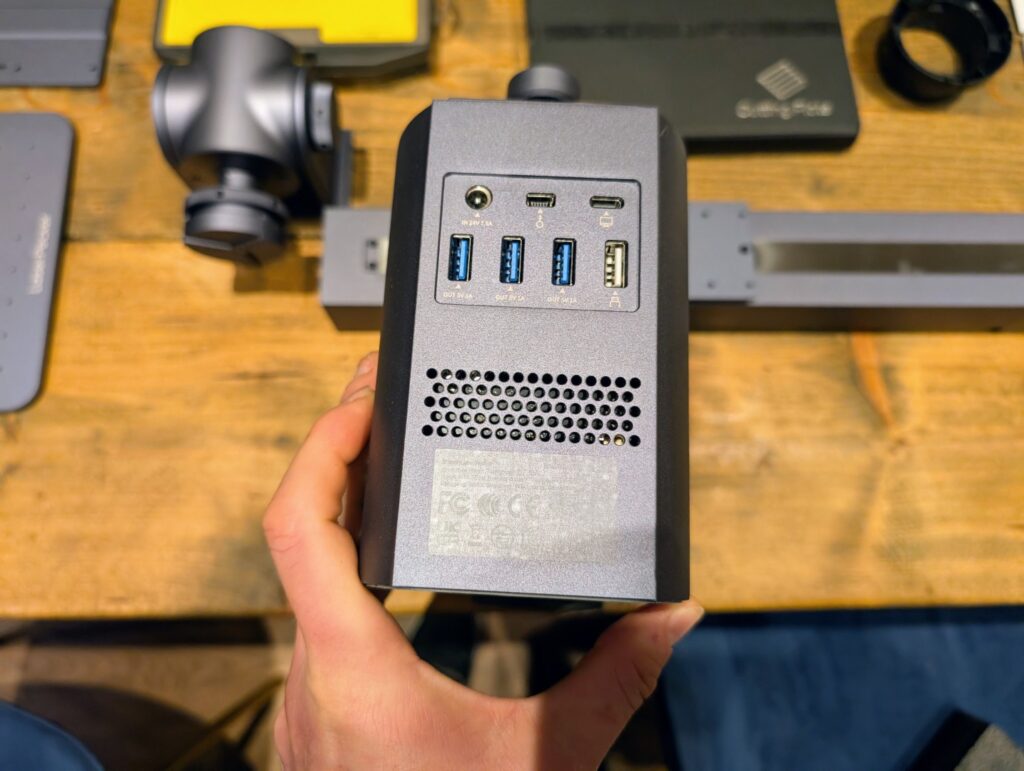

Connecting to a computer or mobile device is also uncomplicated. The LP5 supports USB-C for direct connection and Wi-Fi for wireless operation, though only 2.4 GHz networks are supported. Initial setup requires registration within the LDS software or app.

Users should take care to follow safety protocols, including wearing the supplied protective glasses and using the enclosure or cover during operation.

Software

LaserPecker’s Design Space (LDS) software is available for Windows, macOS, iOS, and Android, providing a unified experience across platforms. The software supports a range of file formats, including PNG, SVG, DXF, and offers a clipart library, text tools, and shape creation. The interface is user-friendly, with clear options for selecting laser type, power, depth, speed, and resolution.

Key software features:

• Project creation: Import images, vector files, or use built-in designs.
• Material presets: Reference tables for different materials help users get started, though fine-tuning is often required.
• Preview modes: Rectangle, outline, and centre point previews aid in accurate placement.
• Batch processing: Smart filling and camera-based alignment (with enclosure) simplify repetitive tasks.
• Connectivity: USB, Wi-Fi, and Bluetooth options; easy device pairing.
• Mobile app: The LDS app mirrors most desktop features, though some advanced options (such as black fill) are limited on mobile.

The software is generally stable, though some users may encounter issues with Wi-Fi connectivity or require additional configuration for optimal results. Documentation is adequate but could be improved, especially for troubleshooting less common scenarios.

For most of my testing, I opted to use the Android app, which was easy to use and worked reliably.

In Use

Material Compatibility and Results

The LP5’s dual-laser system enables engraving and cutting on a wide variety of materials. The package included several items to work with including wood, leather, acrylic, metal, stone and two wooden keyrings.

• Wood: The diode laser produces crisp, detailed engravings and can cut thin sheets. The lack of air assist means some charring and smoke residue, but this can be mitigated by sanding or using masking tape. Engraving is fast, with simple keyrings or coasters completed in under a minute. Cutting thicker wood is possible but requires multiple passes and careful parameter adjustment.
• Metals: The fibre laser excels on stainless steel, aluminium, brass, and similar metals. Engravings are sharp, with good depth and contrast, suitable for tags, coins, and jewellery. Cutting thin metal (up to 1 mm) is possible, though it is slow and may require multiple passes.
• Leather: Both engraving and cutting are effective, producing clean results with minimal scorching when parameters are optimised.
• Acrylic, Glass, Stone: The diode laser can engrave acrylic and glass, while the fibre laser handles stone and coated metals. Results are generally good, though experimentation with settings is needed for best outcomes.
• Plastics: The fibre laser can mark certain plastics, though results vary depending on composition.

Speed and Precision

The LP5 is capable of very high engraving speeds, particularly at lower resolutions. For intricate designs or high-resolution work (up to 8K), speed is reduced, but detail is excellent. The preview system, with its blue framing light and red dot focusing, aids in precise placement, though ambient lighting and material reflectivity can affect visibility.

When I engraved one of the included keyrings, it successfully completed the process in a few seconds.

Batch processing is efficient, especially with the safety enclosure and camera module, which automates alignment and filling for repeated tasks.

Accessories and Add-ons

• Rotary Extension: This accessory allows engraving on cylindrical objects such as mugs, tumblers, and bottles. Setup is straightforward, and the software provides tools for perimeter and diameter adjustment. Results are consistent, though correct parameter input is essential for accurate alignment.
• Safety Enclosure: The enclosure provides enhanced safety, reducing noise and light exposure, and includes an emergency stop button that doubles as a power control. Ventilation is adequate for most tasks, though users working with plastics or leather may wish to vent fumes externally.
• Slide Extension: Expands the working area to 160 x 300 mm, useful for larger projects or batch jobs.

User Experience

I am not a crafty person and have no experience with laser engravers, but I found the LP5 is easy to learn, with intuitive controls and a gentle learning curve for basic tasks.

For basic tasks, it’s really just a matter of setting the dimensions of the item to be engraved, adding your design, using the preview function to align the item, and setting the power levels. Even getting the right power levels is as simple as there are numerous predefined settings. Once I had done one successful engraving, I typically adjusted the settings based on the results from the last engraving. For example, I initially used balsa wood to do a QR code, but then did a keyring which was thicker wood, so I dialled up the settings for a deeper cut.

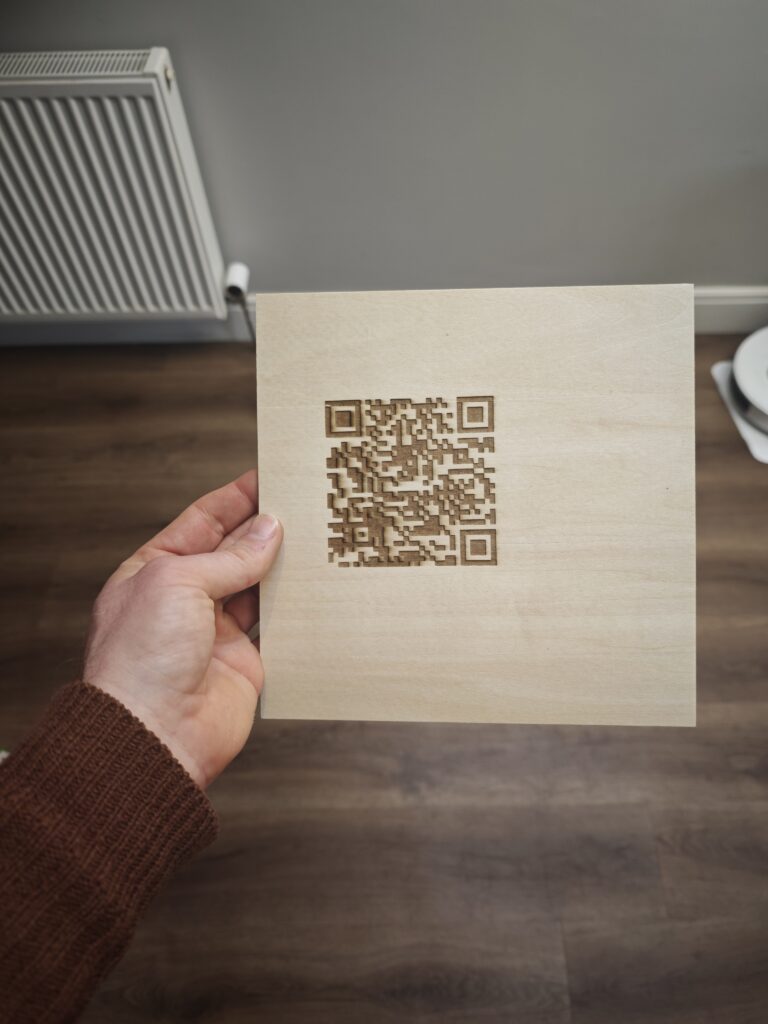

I’d say the hardest part is making sure everything is measured and lined up correctly to ensure it looks good when finished. As you can see from my QR code, I didn’t bother to use the preview function or align anything up, so the end result is very wonky.

More advanced operations, such as deep 3D engraving or multi-material projects, require experimentation and familiarity with the software’s parameter settings. The absence of a physical power button is a minor annoyance, as the machine powers on with a noisy fan as soon as it is plugged in.

The machine’s compact size and light weight make it suitable for desktop use, and the modular design allows for easy transport and storage.

Price and Alternative Options

Preview	Product	Rating	Price
	LaserPecker LP5 (Basic) 20W Fiber & Diode Dual Laser...	No ratings yet	£2,499.00	Buy on Amazon

Buy from LaserPeckerBuy from Amazon

The LaserPecker LP5 starts at £2500 for the basic bundle. The Deluxe bundle I was sent is £2900, and the Ultimate bundle is £3200.

The LaserPecker LP4 starts at £1259, and the portable LP2 starts at £629.

Xtool has the F1 from £1300, which is a 10w laser engraver, or the  F1 Ultra, which is a dual 20w laser engraver like the LP5 but features air assist and a touchscreen. But, it costs £3279.

The Omtech 20w Galvo Fibre Laser Marking Machine is available for £2159.

Overall

The LaserPecker LP5 Smart 20W Laser Engraver is a versatile, compact machine that bridges the gap between hobbyist and professional use. Its dual-laser system enables work on a broad range of materials, from metals to organics, and its high-speed operation is well-suited to both single projects and batch production. The software is accessible, and the accessory ecosystem (rotary, enclosure, slide extension) expands its usefulness for small businesses and creative studios.

The LP5 is best suited to users who need a flexible, space-saving engraver for a variety of materials, and who value speed and ease of use over maximum work area or integrated controls. It is a strong option for small businesses producing personalised items, makerspaces, and serious hobbyists. Those requiring larger work areas, integrated touchscreens, or air assist may wish to consider alternatives, but for most users, the LP5 offers a well-balanced combination of performance, versatility, and value.
