[Original Post: 19 October 2020] Now updated with benchmarks and more accurate information

The future of flagship chipsets from Huawei owned HiSilicon remains in doubt due to the extensive restrictions placed upon the company by the US in this protracted political dispute.

So the Kirin 9000 could very well be the swan song for Hisilicon, at least for flagship chipsets.

These issues have caused a delay for the Huawei Mate 40 series, but the phones will finally be launched globally this week, and as usual various leaks and benchmarks are quickly coming out prior to the launch.

This is technically more of a 2021 flagship chipset so it is the first one to launch. Therefore it is only possible to compare against  Samsungs recently launched upper midrange Exynos 1080 and the existing Qualcomm Snapdragon 865+ (rather than the SD875 due to be announced in December).

Specification

chrome q5WjddnSXp

The exact specification of the Kirin 9000 remains unknown, but we know the chipset will be made on the 5nm fabrication process and leaked benchmarks indicate that the chipset is running four Cortex-A77 cores that are clocked at 3.13 GHz.

This would make it higher clocked than the existing Snapdragon 865+ which has its prime core running at 3.09 GHz. While this is a massive upgrade compared to the Kirin 990 5G it replaces, it is a generation behind what the SD875 will likely use.

The Samsung Exynos 1080 is the first chipset to implement the Arm Cortex A78, however, with this being a mid-range chipset it only has two of these cores, running at an unknown speed.

The Kirin 9000 will use the Arm Mali-G78 GPU and it has a massive 24 cores which should make it incredible for gaming

This is the same GPU as the Samsung Exynos 1080, which also has not had the cores or frequency specified yet.

SoCKirin 9000Snapdragon 865+MediaTek
Dimensity 1000
Exynos 1080
CPU1x Cortex A77
@ 3.13Ghz
1x Cortex A77
@ 3.1GHz 1x512KB pL2
4x Cortex A77 @ 2.6GHz1 x ARM Cortex-A78 @ 2.8GHz
3x Cortex A77
@ 2.54Ghz
3x Cortex A77
@ 2.42GHz 3x256KB pL2
4x Cortex A55 @ 2.0GHz3 x ARM Cortex-A78 @ 2.6GHz
4x Cortex A55@
2.05Ghz
4x Cortex A55@
1.80GHz 4x128KB pL2
4MB sL3
6 ARM [email protected]
GPUMali-G78
24 Cores
Adreno 650
+10% Perf
Mali-G77MP9 @ ? MHzARM Mali-G78 MP10
APU / NPU / AI Proc. / Neural IP2 big core, 1 tiny core

Hexagon 698
15 TOPS AI

"3rd gen APU"Dual NPU + DSP
MemoryLPDDR5 / LPDDR 4X 4x 16-bit CH
@ 2133MHz LPDDR4X / 33.4GB/s
or
@ 2750MHz LPDDR5 / 44.0GB/s
3MB system level cache
?LPDDR5 @ 2750MHz
ISP/Cameraquad-core, 6th gen ISP


Dual 14-bit Spectra 480 ISP



80MPSingle: 108MP
Integrated ModemBalong 5000
4G + 5G NR NSA+SA Sub-6GHz
external X55
(5G NR Sub-6 + mmWave)
DL = 7000 Mbps
UL = 3000 Mbps
5G Sub-6
DL = 4600Mbps
UL = 2500Mbps
Exynos Modem External
(5G NR Sub-6)
DL = 5100 Mbps
(5G NR mmWave)
DL = 7350 Mbps
ProcessTSMC
5nm
TSMC
7nm (N7P)
N75nm
chrome ytPjii0gxX
chrome 5kGhnZckn2

Benchmarks

Antutu

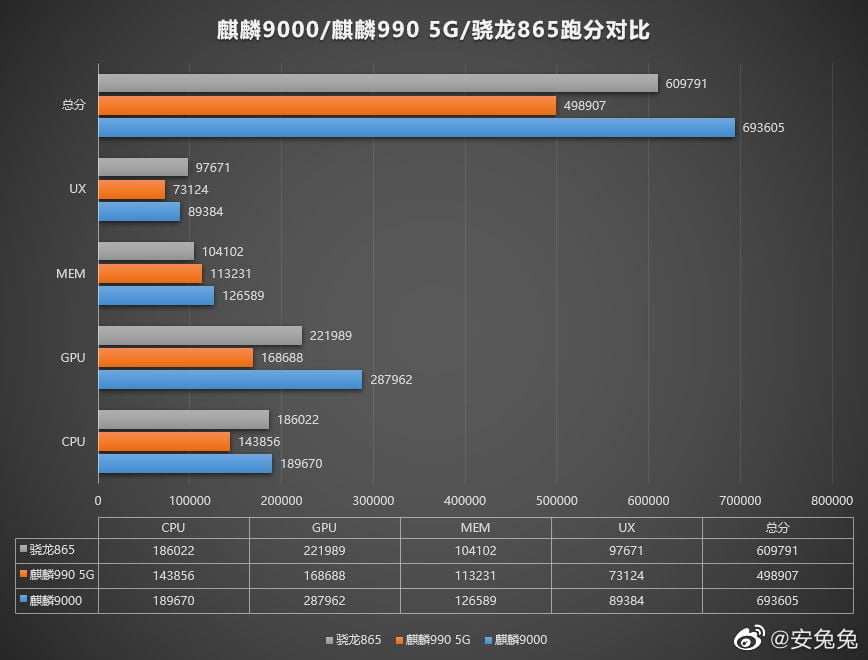

Kirin 9000 antutu Benchmark

Leaked benchmarks indicate the Kirin 9000 achieving 693,605 which would put it almost 8% ahead of the currently most powerful phone on the market, the Asus ROG Phone 3 which uses the Qualcomm Snapdragon 865+.

It was previously reported than the Exynos 1080 would be able to achieve an extremely impressive result of over 650,000. While this is below the Kirin 9000, it is worth remembering this is not a flagship chipset.

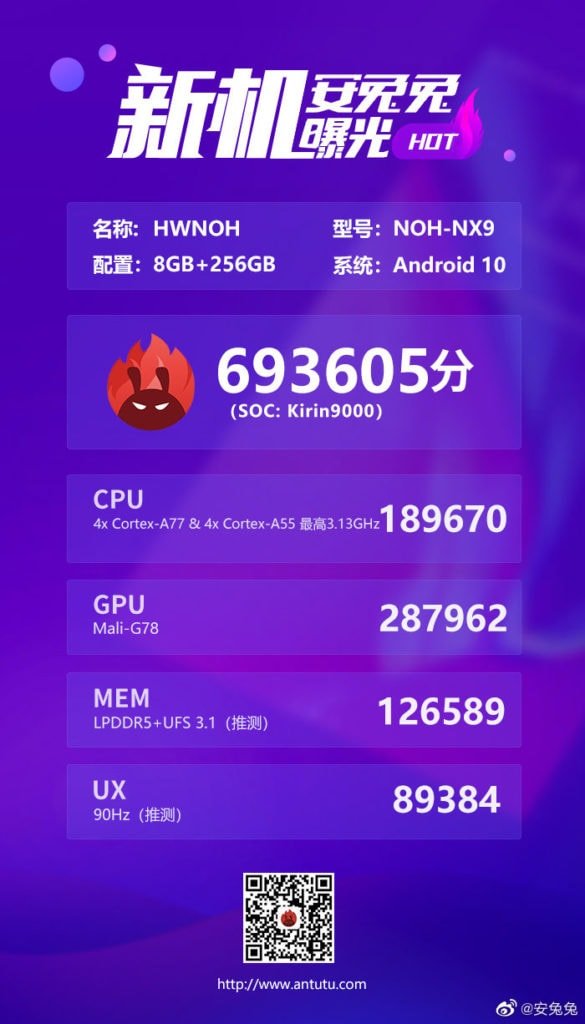

Kirin 9000 antutu Benchmark2

Geekbench

chrome jdb8LAWTGs

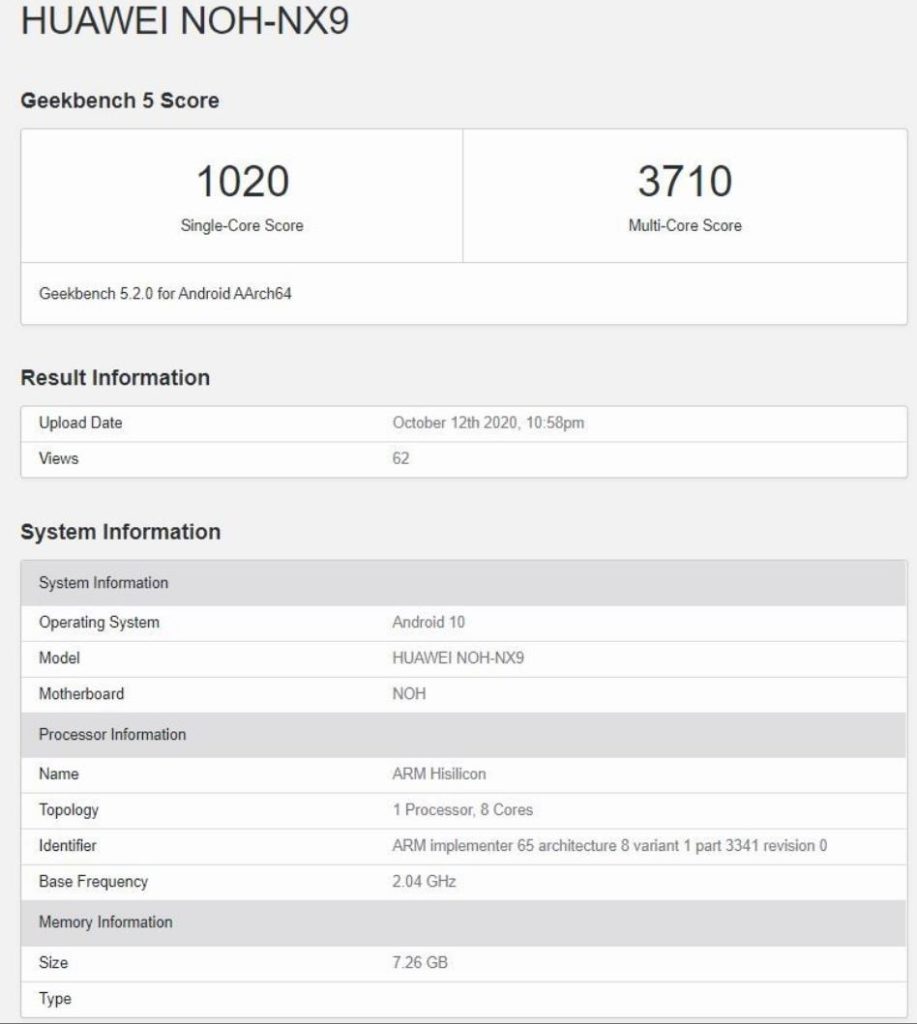

In Geekbench the Kirin 9000 managed to achieve 1016 for the single-core and 3688 for multi-core.

This puts it out comfortably ahead of the Qualcomm Snapdragon 865 which managed 975 and 3357, giving it a 4.2% and 9.8% advantage overall.

Geekbench 5ChipsetSingle CoreMulti Core
Honor Magic5 ProSnapdragon 8 Gen 214814932
Honor Magic4 ProSnapdragon 8 Gen 112203569
Xiaomi Mi 11Snapdragon 88811393693
OnePlus 9 ProSnapdragon 88811093487
Samsung Galaxy S21 UltraExynos 210010793381
Google Pixel 6Google Tensor10422957
Xiaomi Dimensity 8200-Ultra 10053744
OPPO Find X5 Pro Snapdragon 8 Gen 19763484
Asus ROG Phone 3
S
Snapdragon 865+9753357
Realme GT Neo 3Dimensity 8100 9663672
OPPO Find X3 ProSnapdragon 8889283357
Realme X50 ProSnapdragon 8659103205
Infinix Note 30 VIP Dimensity 8050 8543047
Redmi K30 Ultra Dimensity 1000+7822890
Samsung Galaxy S20Exynos 9907722590

3DMark Benchmark

ChipsetSling Shot Extreme OpenGLSling Shot Extreme VulcanWild Life
OnePlus 9 Pro Snapdragon 888Maxed OutMaxed Out5775
Samsung Galaxy S21 UltraExynos 2100773664675741
Xiaomi Mi 11Snapdragon 888827481825663
Huawei Mate 40 ProKirin 9000916884015976
Asus ROG Phone 3Snapdragon 865+764570024127
Realme X50 ProSnapdragon 8653791
Black Shark 3 Snapdragon 86572156606
Redmi K30 Ultra Dimensity 1000+66146143
OnePlus 7TSnapdragon 855+62785504
Black SharkSnapdragon 85557915030

In 3DMark we see where HiSilicon have focussed their efforts, the 24-core Mali G78 GPU decimates the competition.

In the Sling Shot Extreme OpenGL test the Mate 40 Pro scores 20% higher than the Qualcomm Snapdragon 865+ on the Asus ROG Phone 3 and 38% higher than the Redmi K30 Ultra using MediaTek’s top of the range chipset.

As far as generational improvements go, the Kirin 9000 offers more than double the performance than the Kirin 990 on the Huawei P40 Pro with a 106% difference.

Things are just as impressive with the Sling Shot Extreme Vulcan test being 20% ahead of the SD865+, 37% ahead of the Dimensity 1000+, and ever so slightly under double the performance of the previous generation Kirin 990 5G (98.4%)

What else is known about the Huawei Mate 40 Pro?

My original post was based on the many leaks about the phone, but a quick recap:

  • Display: 6.76 inches AMOLED 90Hz 2772 x 1344
  • Chipset: Kirin 9000 5G (5 nm)
  • RAM: 8GB / 12GB
  • Storage: 256GB / 512GB
  • Rear Camera:
    • 50 MP, f/1.9, 23mm (wide), 1/1.28″, 1.22µm, omnidirectional PDAF, OIS
    • 12 MP, f/3.4, 125mm (periscope telephoto), PDAF, OIS, 5x optical zoom
    • 20 MP, f/1.8, 18mm (ultrawide), PDAF
    • TOF 3D, (depth)
  • Front Camera:
    • 13 MP, f/2.4, (wide)
    • TOF 3D, (depth/biometrics sensor)
  • Battery: 4400mAh with 66W charging and 50W wireless
  • Other Features:
    • Stereo speakers
    • IP68

Overall

For the time being, the HiSilicon Kirin 9000 takes the performance crown comfortably outperforming the older Qualcomm Snapdragon 865 Plus.

During the launch, Huawei was a little cheeky with their marketing speak stating that other companies haven’t been able to launch 5nm yet. This is technically true, but Samsung have announced the 5nm Exynos 1080 and Apple are the first company to launch a 5nm chipset with the Apple A14. Qualcomm with their later launch cycle will announce the 5nm SD875 in December.

Mediatek remains a mystery, last year they were the first to announce a flagship, but it took months to materialise in a phone, there is no word on its successor yet.

With HiSilicon still using CPU architecture a year behind the up and coming 2021 flagship chipsets, the advantages the Kirin 9000 has will be short-lived when the SD875 becomes official. While the Qualcomm chipset will definitely beat HiSilicon with CPU performance it will be interesting if anyone can match the GPU performance.

For me at least, performance has become so good in mid-range and flagship chipsets that I struggle to notice real-world differences between one brand and the next. The Huawei P40 Pro performs just as well as my Realme X50 Pro. Things like battery performance have become more important to me nowadays.

It is sad that this may be the last flagship chipset from HiSilicon for a while, as much as I love Qualcomm chipsets, with them having such a dominant market share it will inevitably stifle future advancements.
