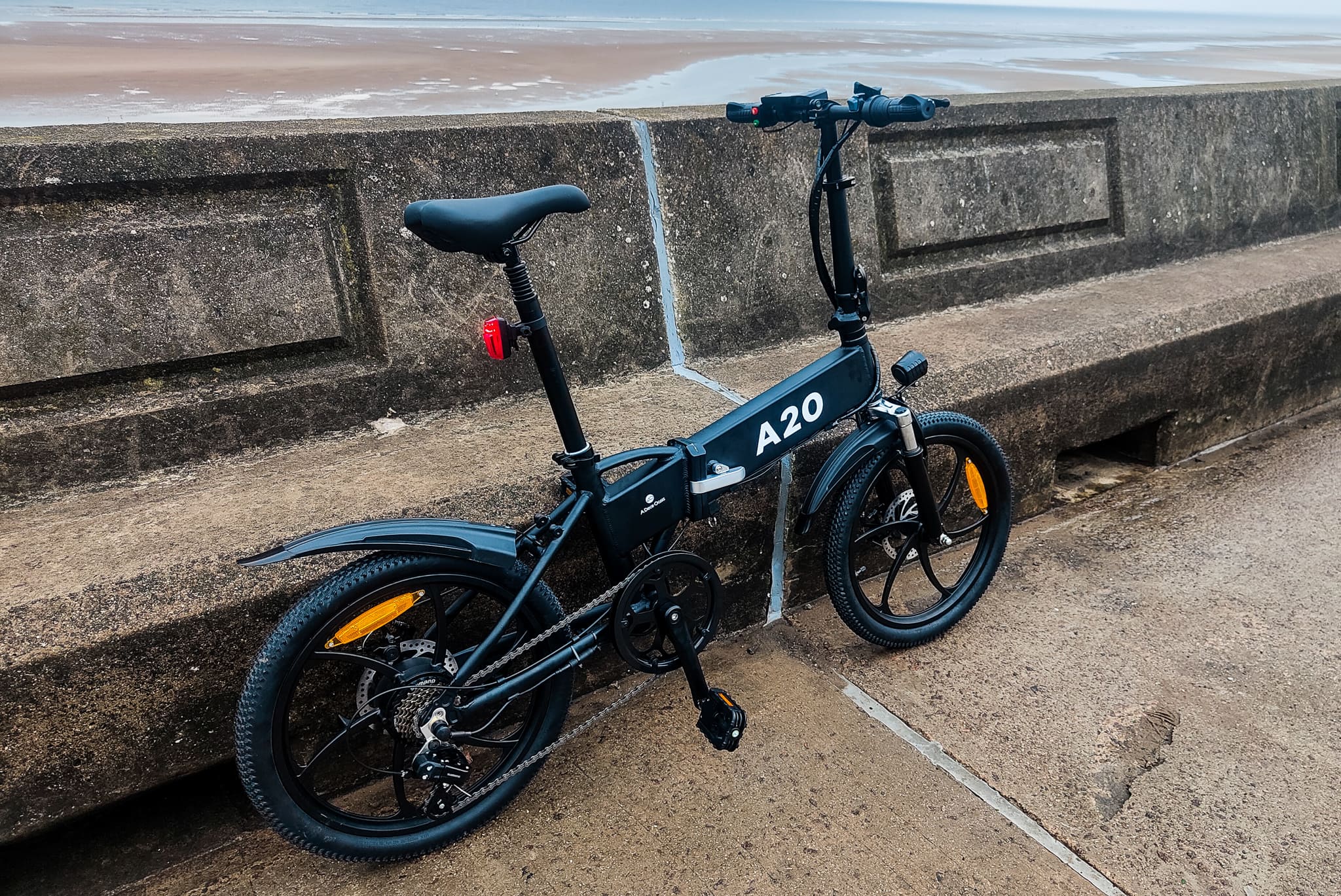

ADO A20 Ebike Review: Ditch the electric scooter and get this affordable folding electric bike

Sharing is caring!

ADO A20 Folding Electric Bicycle Review Rating

Summary

I think that foldable electric bikes, in general, are superb, and the ADO A20 should be a strong consideration for anyone wanting an affordable well made bike with excellent range.

Overall
85%
85%
  • Overall - 85%
    85%

Pros

  • Affordable compared to popular brands
  • Comfortable ride
  • Superb range
  • Excellent assist

Cons

  • Very heavy

I have previously reviewed the Volt Connect Electric Bike about four years ago. At the time, I was quite sceptical of the benefits of eBikes, but I did like the idea of using it for commuting.

Since then, electric scooters have become the rage, some people love them, some people hate them. I loved using them in Europe, but they are still illegal to use on the roads in the UK, so they feel more like a nuisance at the moment.

Electric bikes have also gained popularity, in particular, foldable ones such as the ADO A20 I am reviewing today. While it is not cheap, at £719, it is considerably cheaper than the Volt, and the smaller foldable design makes it a little bit more commuter-friendly.

Volt also does folding bikes, but these are around twice the price at £1599.

I have come away as a big fan of the electric bike concept. I know drivers hate cyclists, but this seems to be a logical solution to the major issues we have with congestion and an affordable and even more environmentally-friendly alternative to electric cars.

YOu can find out more about ADO from the official website or the Facebook page.

Discount Code

I was kindly provided a discount code for this bike which will take £30 off, taking it down to £749.00. This is from the official UK distributor markshop.co.uk so you don't have any import duties or long delivery times to worry about.

Marks Shop currently states a 1-3 day delivery time and should you have any issues with the bike all the support is done through them with livechat from 10am-7pm and 24-hour email response.

  • Code: MIGHTY30
  • Start date: 5th of October
  • Ending date: 31st of October

Specification

ItemSpecification
BrandADO
Type20*1.95 Inches
ModelA20+
Colorblack/white
Dimensions L?W?HOverall unit:1550*530*1100mm
After folding:900*430*700mm
Operating Temperature-10~40?C
Storage Temperature-20~50?C
Net Weight24kg
Gross weight28kg
IP RatingIPX5
Max. Speed25km
TransmissionShimano 7 speed
Electric range
Assisting range
Shock-absorptionFront fork and addle tube double Shock-absorption
BrakeFront: Mechanical disc brake
Rear: Mechanical disc brake
Charging time6 hours
Payload≤120kg
MaterialAluminum alloy
Handgrip MaterialTPR
FoldableYes
Adjustable of heightYes,with protective jacket
Small bellElectronic speaker
Brake handleleft/Right
Mobile Phone Charging Station5V/2A USB type A+ Charging Base
Drivenmethod/
MaterialAluminum alloy
Hub typeIntegrated molding hub
Size20*1.95 Inch
TireRubber pneumatic tire
BrakeMechanical disc brake
DrivenmethodMotor drive wheel
MaterialAluminum alloy
Hub typeIntegrated molding hub
Size20*1.95 Inches
TireRubber pneumatic tire
BrakeMechanical disc brake
MaterialAluminum alloy
TypeMain Girder Folding
ParkingParking Stand
Battery locationBuilt-in main girder
Reflect StickerOn saddle tube
Max Steering Angle90?(each side)
Rear Tale Light/
Air pumpYes
Foot Pad MaterialNylon
Foot Pad TypeFolding
Carrying handleYes
MaterialLithium battery
Type of batteriesRemovable portable charging
Battery number40PCS
Rated Voltage36V
Charge cut-off voltage42V
Rated Capacity36V10.4AH
Charging Temperature0~40?C
Battery ManagementSystemOver-heating, Short circuit,
Over- current, Over-charge protection
Input Voltage100~240V, 50/60Hz
Output Voltage42V DC
Output Current2A
Output Power84W
Brand\
Motor TypeHall Brushless DC Motor
Rated Voltage36V
Rated Power250W
Max. Power\
Rated speed380 r/min
Turn On/OffVisible button on the speed control handle
Riding Modes Switch
Front Light Switch
Display Type886 Type HD LCD Display, Clearly under the sunshine
Display ContentsSpeed, mileage, Gear, glitch
Electronic booster starting point5 KM start (CE )(Can change to 0KM start by enduser)
Under voltage protection31±2V
Over current protection15±2A
Shimano 7 speed Transmission System
250W Power rate Motor with 380 r/Min speed
Front fork and addle tube double Shock-absorption
886 Type HD LCD Display,clearly under the sunshine
Humanization design,like USB Charger/Carrying handle....

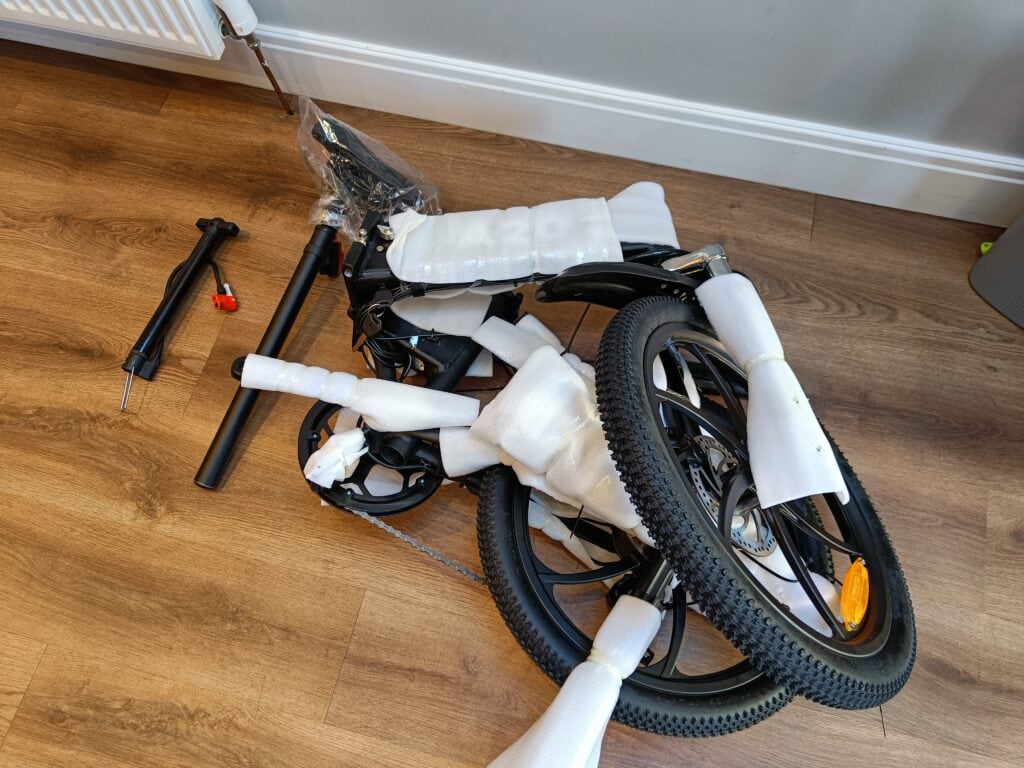

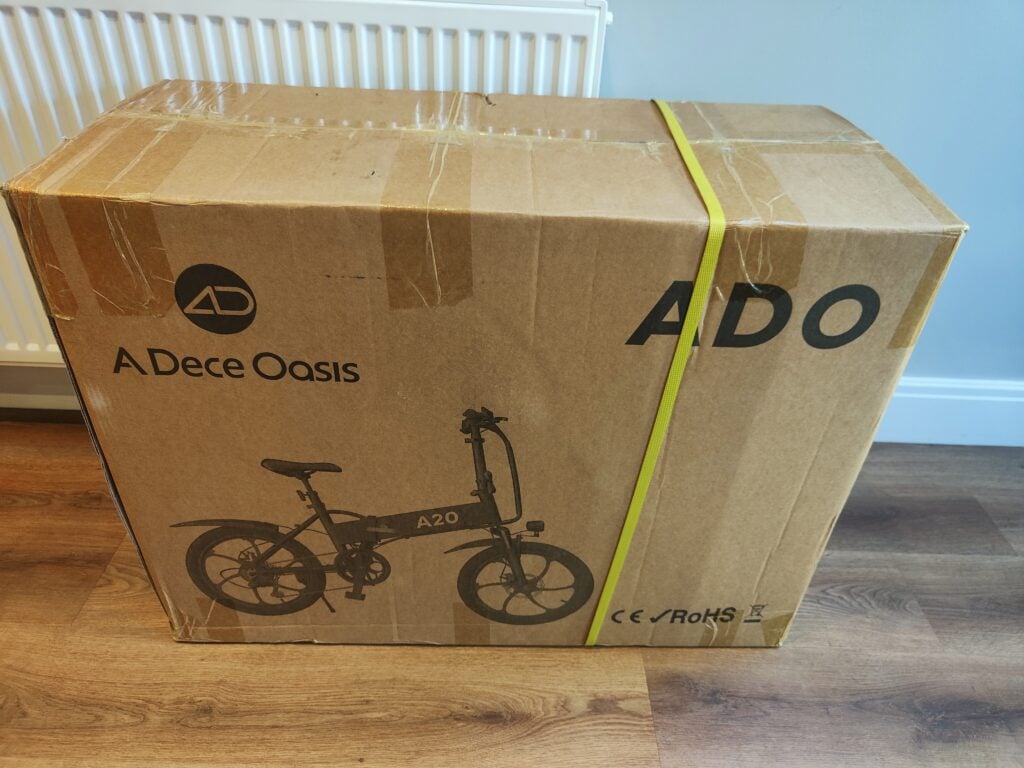

Unboxing and Build

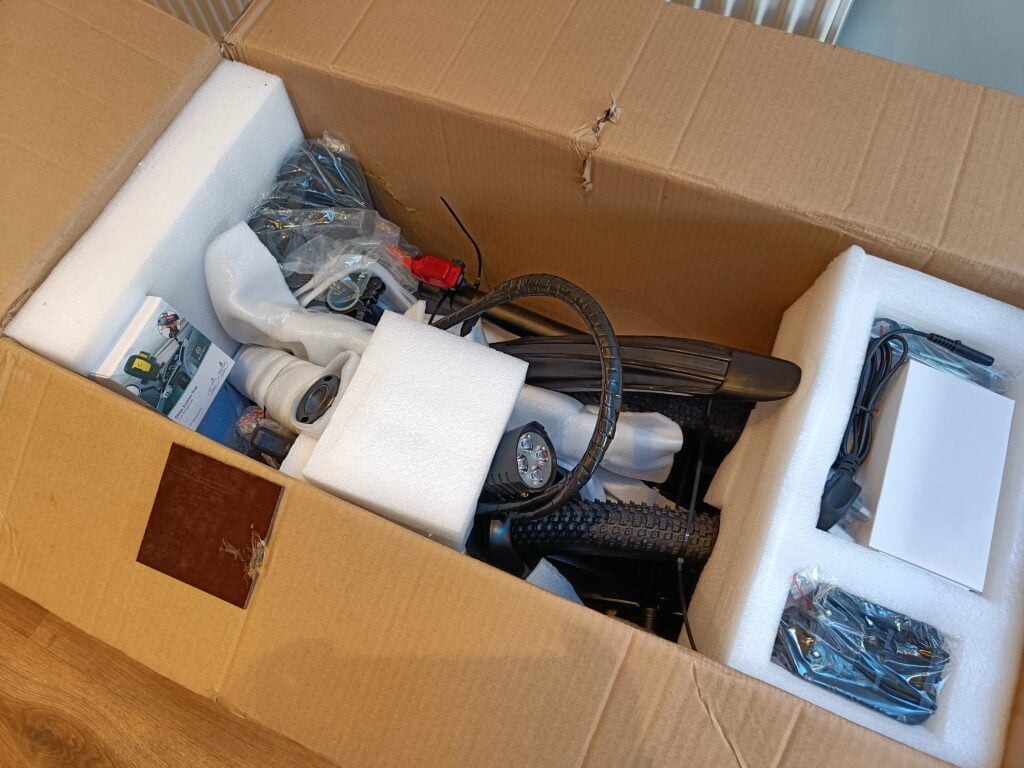

The bike appears to be packed up as well as can be. There are plenty of foram inserts to provide some padding, then large parts of the frame have additional thin padding around them, which are taped to the frame. This should help avoid unwanted scratches. There are then quite a lot of zip ties used to hold it all together during transit. Unpacking it all did take a bit of time, which is probably a good thing.

There is not much to do as far as the bike assembly is concerned. Clamping the frame tother was self-explanatory, however, the front shaft was confusing enough that I had to refer to instructions.

You have to align the two stickers together, then tighten up the hex screw in the main shaft. I found that it didn’t feel like it was doing much when tightening it, but eventually, it all locked into place.

Most things can be adjusted, including the seat high and handlebar height, so this should be customisable for almost any size.

As a road bike cyclist, finding a comfortable position took a little time. I tried setting it up as a road cyclist extending my legs fully on the down paddle, but the overall design of this prefers a more bent leg.

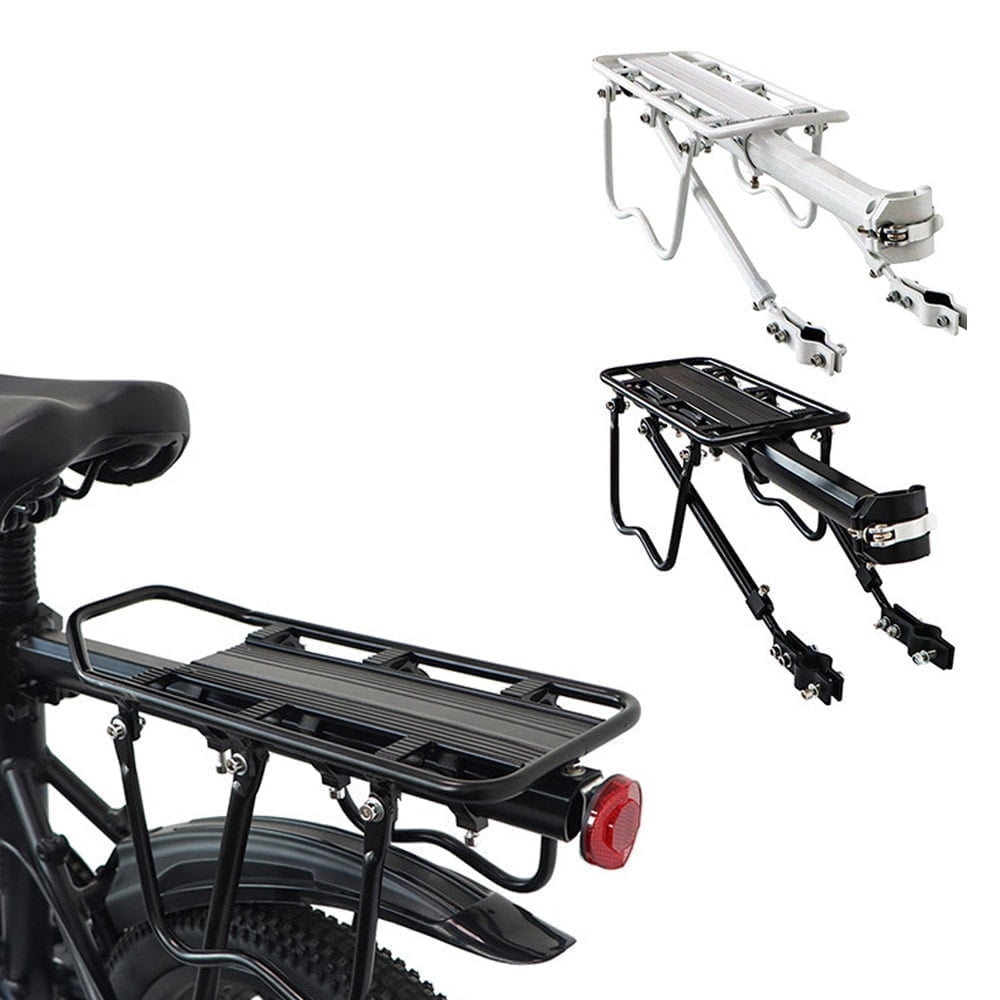

Pannier Rack / Rear Luggage Shelf

A commenter pointed out my lack of comment regarding a luggage shelf for this bike. A mistake on my behalf.

It is possible to buy a rear shelf rack for this bike and it looks like it attaches using a generic mount around the seat post and frame.

This is not currently sold by Marks Shop in the UK but you can buy it from Aliexpress and Banggood for around £46.

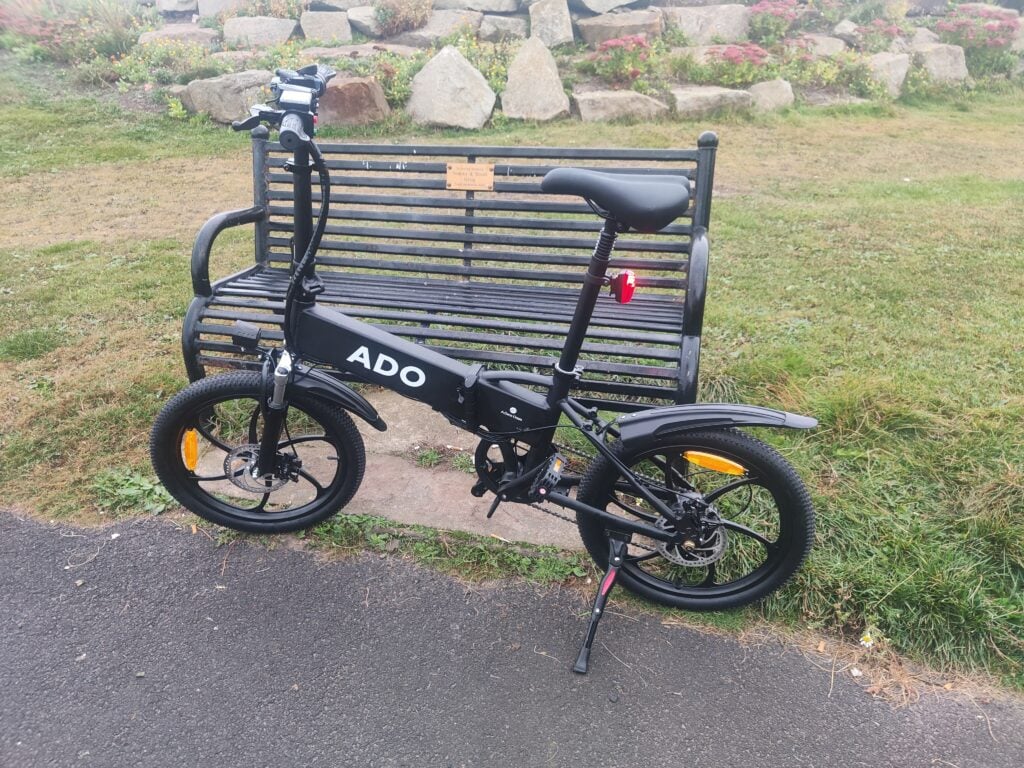

Build Quality

The first thing I noticed about the ADO A20 was how much it weighs. At 21Kg, this is very heavy. Some of the marketing material shows someone loading this into the boot of a car, but my partner struggled to pick it up at all.

However, the weight does mean this feels like a tank, and there are no significant built quality issues I can think of.

One reason I opted for this bike vs the larger ADO A20F with its fat wheels is the inclusion of mudguards. When I used to cycle my road bike on wet roads (a common problem in the UK), the backsplash from the wheels was very unpleasant. So the mudguards on this should help keep you a little bit drier on wet days.

The main thing was the pedals were difficult to get in smoothly (which led to my damaging them), so you may need some grease to help the installation.

The metal used on the keys is poor quality, I managed to bend one key with barely any force, so you will want to be careful there.

ADO includes a pump for your tires, I didn’t even bother to try and use it as it looks to be terrible quality. You would be better off with a track pump.

In Use – Riding experience and range

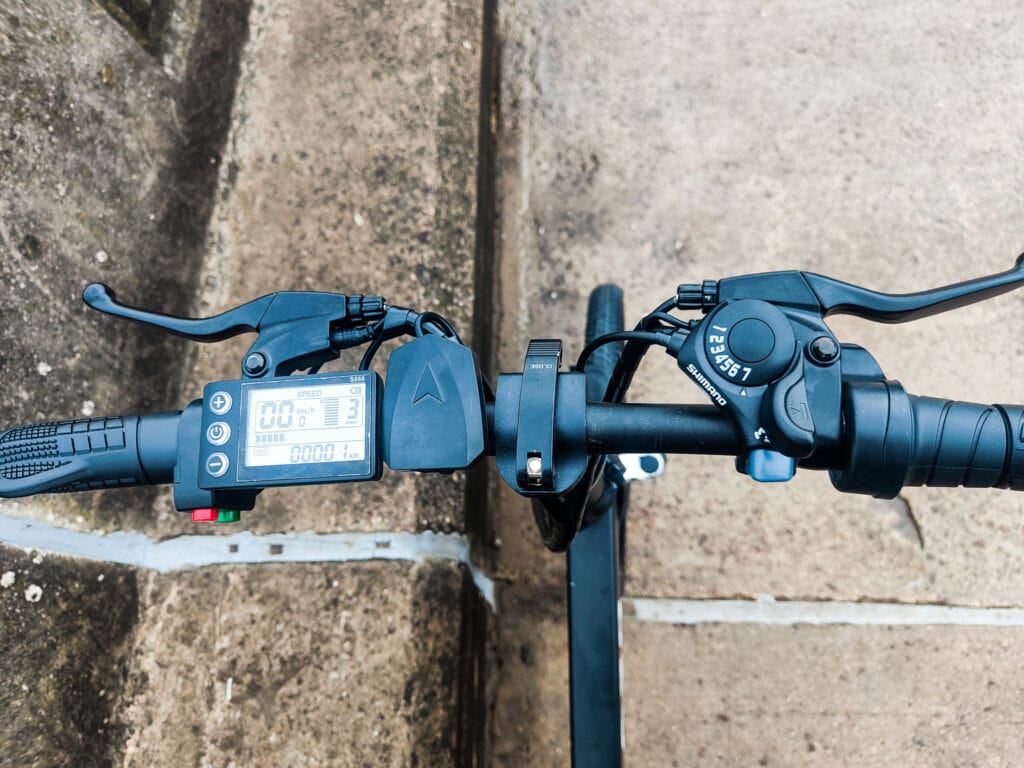

Computer and modes

The reason why this is road legal compared to an electric scooter is that you provide pedal-assist for the main modes.

You have three levels of assist as well as the electric assist switched off completely. You then also have a throttle which is on rotary selector on the right side. The throttle allows you to switch to 100% electric assist when in modes 2 and 3.

Speed

Mode 2 allows you to reach a maximum speed of around 20 km/h, and the last mode is set to 25 km/h, which is the limit of both Mode 2 allows you to reach a maximum speed of around 20 km / h, and the last mode is set to 25 km/h. It is possible to unlock this and allow it to go up to 35km/h. However, I have not done this.

I find 25km/h(15mph) is more than fast enough for most urban cycling and is quite a bit faster than most casual cyclists go. It is also slow enough that you don’t feel too unsafe riding around.

In mode 3, without the throttle, I found it very easy to maintain to 25 km/h, even going up slightly to moderate inclines was easy. With a steeper incline, things did drop down to around 20km/h, and I had to put in a little bit of offer.

Due to the weight and gearing, cycling with no assist felt sluggish, but it does a perfectly good job and should be fine on a nice day for a casual cycle.

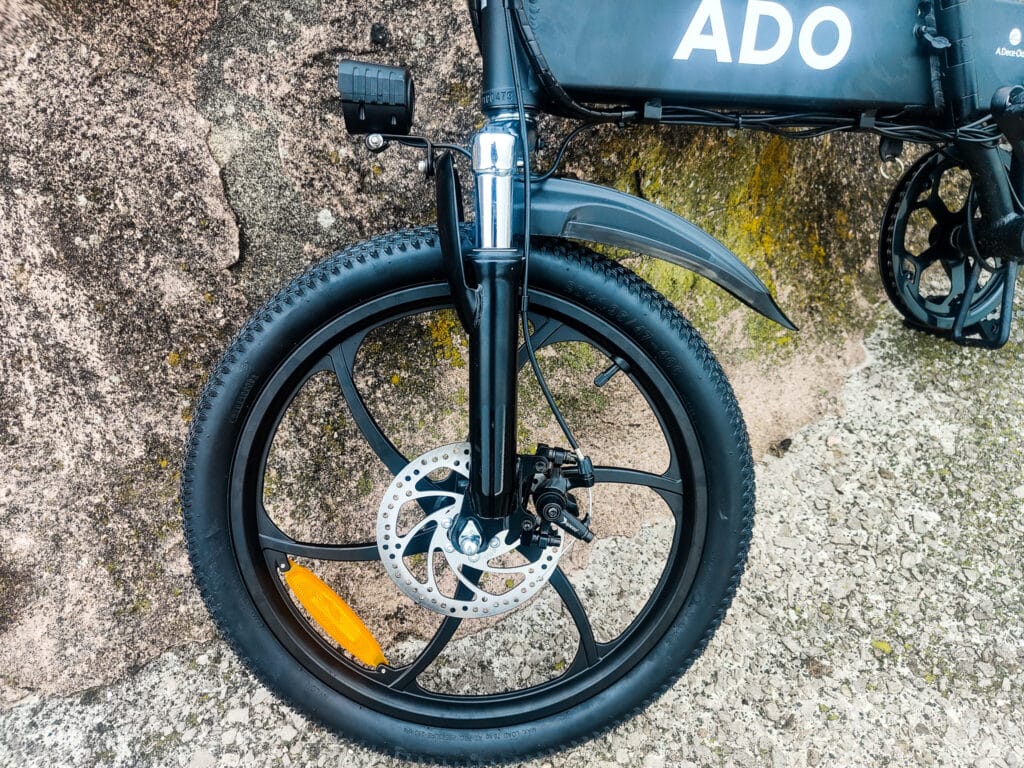

Braking

Braking is fine, you have mechanical disk breaks, it is not quite as responsive as hydraulic, but for commuting use, I have found it to be more than adequate.

Range

The specification states an electric range of under 60km and an assisted range of 80km. Although, like most things like this, this is the best theoretical range, if you are very light cycling on a flat surface with no wind, it may be possible.

I predominantly used the level 3 assist with some hills, and I would estimate a 40-50km range. This is more than enough, I can’t imagine many people commuting 40km on a bike each way, and it is enough range for you to use it intermittently throughout the day then charge it overnight.

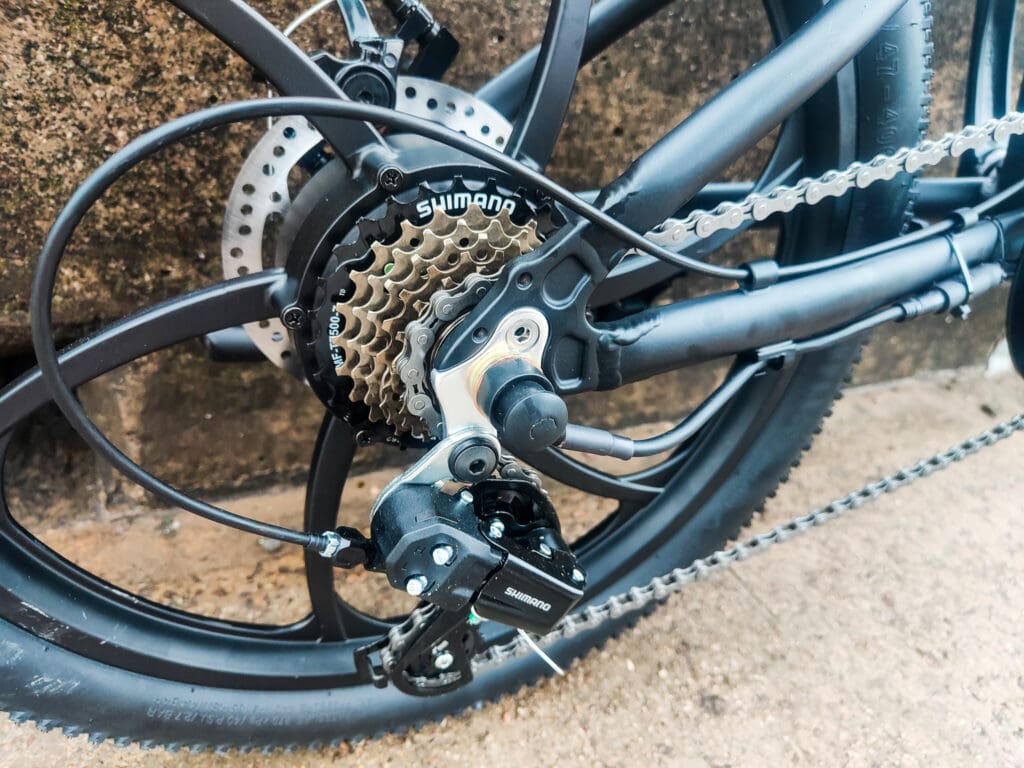

7-speed Shimano gearset

Some bikes lack properly gearing, but this has a 7-speed Shimano. I found it to be very easy gearing with me, typically leaving it in gear 7 all the time. However, it does mean you wont have to put in too much effort with cycling should you run out of juice mid-ride, and you can easily complete your journey with one of the lower settings, albeit at a much slower speed.

Shock seat post

The seat post of this has a built-in shock absorber, which felt a little unusual at times as you can literally feel the seat drop down a bit. However, it will smooth out any significant bumps keeping avoiding your rear end from getting sore.

Lights / Horn

On the controller, you have two buttons, one for the light and the second for a horn. The light is decent enough and a useful addition for commuters. Unlike normal bikes, the horn is electric, and it is surprisingly loud.

The seat also has a rear red light, but this requires you to press a button on the light itself.

How to unlock the speed of the ADO A20

This should not be done if riding on UK roads, as I believe it may be against the law. For private property, you are free to do what you like.

On the controller, hold the two-plus and minus buttons simultaneously for 5 seconds. Then short press the power button until the channel shows P08. Use the plus button to modify the channel value to the desired speed. Wait 5 seconds for the setting state to power off.

Price and Alternatives

You can buy the ADO A20 from MarkShop, which is the official UK supplier of the ADO bikes. The RRP is £749 but using the code  MIGHTY30, you can get £30 off.

There seem to be quite a few of these cheap Chinese foldable bikes, and they seem to have similar specifications, and the overall design is not too dissimilar either.

MarkShop also sell the HIMO Z20 for £769, which seems very similar to this though it has a 6-speed Shimano gearset.

They then have FIIDO, which range in price from £650 to over £1100.

The Elka Model-T Pro electric scooter that I previously reviewed sold for just under £500 and I think you would be much better off with an eBike vs scooter at this price.

Foldable Electric Bike Comparison

NameADO A20Himo Z20Fiido D4sCarrera CrosscityXiaomi Mi Smart Electric Folding Bike
max. Speed:25 km/h (15mph)25 km/h (15mph)25 km/h (15mph)25 km/h (15mph)25 km/h (15mph)
Unlocked:35 km/h (21mph)not available30 km/h (18mph)not availablenot available
Range:
(assisted mode)
80 km (50mi)80 km (50mi)80 km (50mi)30 Miles25 Miles
Weight:21.2 kg (46,7 lbs)21.9 kg (48.2 lbs)18.5 kg (41 lbs)18kg15kg
Dimensions:
(unfolded)
155 x 53 x 110 cm147 × 61 × 109,5 cm150 × ? × 108 cm??
Dimensions:
(folded)
90 x 43 x 70 cm86 × 45 × 74 cm85 x ? x 64 cmL93cm W40cm H74cm?
Folding Pedals:YesYesNoyes
Payload:120 kg (265 lbs)100 kg (220 lbs)120 kg (265 lbs)100Kg100kg
Seat Pole:adjustableadjustableadjustableadjustableadjustable
Steering Rod:adjustableNOT adjustableadjustableadjustableadjustable
Battery:
(Capacity)
10.4 Ah10.4 Ah10 Ah 8.7Ah5.8ah
Removeable Battery:YesYesNoYesYes
Battery Lock:YesYesNoYes?
Motor Power:250W
(unlocked 350W)
250W250W250W 250W
Sensor:G Drive (improved speed sensor)Hall SensorSpeed SensorSpeed Sensor torque sensor
Throttle:twisttwisttwist??
Powers from standing still:YesNoYes??
Cruise Control:YesNoNo??
Tires:20″ air tube20″ air tube20″ air tube20″ air tube16"
Suspension:
(front/rear)
Yes / YesNo/NoNo/NoRigidRigif
Brake:mechanical (disc)mechanical (disc)mechanical (disc)RimRim
Transmission:
(front/rear)
7-speed (Shimano)6-speed (Shimano)6-speed (Shimano)8-speed (Shimano)Single gear
Display:YesYesYes
Mudguards includedincludednot includedincludedNot Included & no mounts
Pennier Not included Not included Not included YesNot Included & no mounts

Overall

I kind of love the ADO A20, though I am partially biased as it is more the idea of an electric bike like this that I love.

Apart from the fact that it is quite large, heavy and more expensive, this is a considerably better solution than electric scooters. Being road legal makes it orders of magnitude better from the get-go.

While the speed limiter is the same 25km/h as an electric scooter, I am much more likely to go at this speed on a bike than a scooter, it feels much safer. You are also able to carry a much heavier load, either via a backpack or a rear bike rack. This, therefore, makes this ideal for commuting.

Overall, I think that foldable electric bikes, in general, are superb, and the ADO A20 should be a strong consideration for anyone wanting an affordable well made bike with excellent range.
